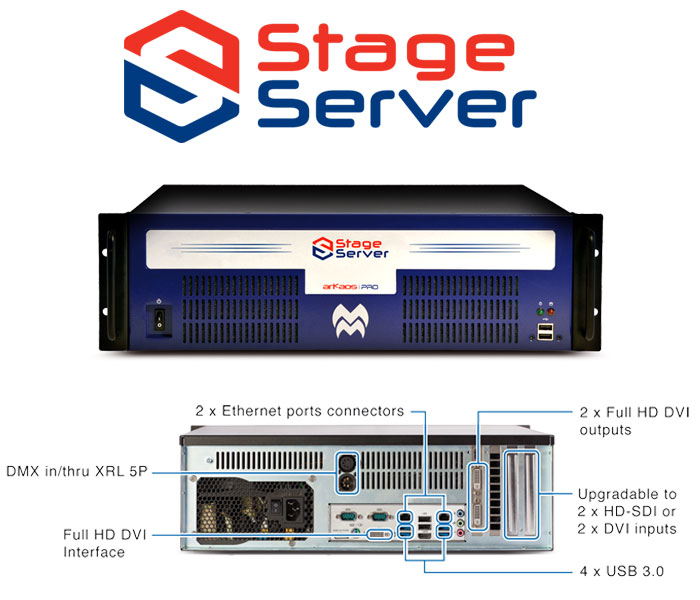

The Stage Server is a perfect solution for live entertainment, theatre, educational, audio-visual and worship applications.

The two Full HD outputs combined with the powerful ArKaos engine from MediaMaster Express will produce smooth visuals that can be easily triggered using a few DMX channels on your lighting desk or notes on a MIDI controller.

Plug and Play Simplicity

  • Access to a vast library of high quality digital media from the world’s best visual content providers
  • Comes installed with MediaMaster Express or MediaMaster Pro
  • Quick and easy setup
  • DMX or MIDI triggering

Smart Design

  • Runs full HD video on two outputs
  • Fast SSD drive as standard
  • Fast recovery system by Acronis allows extremely simple reset from the boot menu
  • Pre-configured to work directly with all marketleading DMX lighting desks

Blistering Performance

  • Shock-resistant up to 2G
  • Thoroughly tested in structural strength, and toleration of heat and vibration
  • Compact design
  • Scalability and creativity at an unbeatable price

Technical informations

I/O Specifications


Interface output 1 (DVI/DP/HDMI) *
Output 2 (DVI) *
EDID Management No
Input (Standard) No
Input (Upgrade) Up to 2 x HD-SDI or 2 x DVI
Output resolution 2 x full HD
DMX- 5- pin connectors Yes
Genlock No
USB 4 x USB 3.0 +
4 x USB 2
Balanced audio in/out (XLR) No
Network 2




System Drive SSD 512 Gb
Data Drive No
Sequential Read Speed 560 MB/s




Operating System Windows 10
MediaMaster Express / Pro
CuePlayer (in Theatre mode) Yes
LED Mapper Yes
Kling-Net Mapper Yes
Video Mapper Yes (Pro version only)
Acronis Backup System Yes
Playback layers 12/36
Soft-Edge / Geometrical Correction Yes (Pro version only)




Control Display (front panel) No
LED Strip (front panel) No
DMX / MIDI / Keyboard Yes
ArtNet / MA-Net Yes




CPU Intel i5
#Threads (cores) 4(4)
Type DDR3
Voltage 107-240V auto switching
Professional Connectors No




Unit Size (HxLxD) 132x426x400 mm
Unit Weight 10,5 Kg
Boxed Size (HxLxD) 300x600x600 mm
Boxed Weight 15 Kg


* Can be converted to HDMI, connectors not provided
